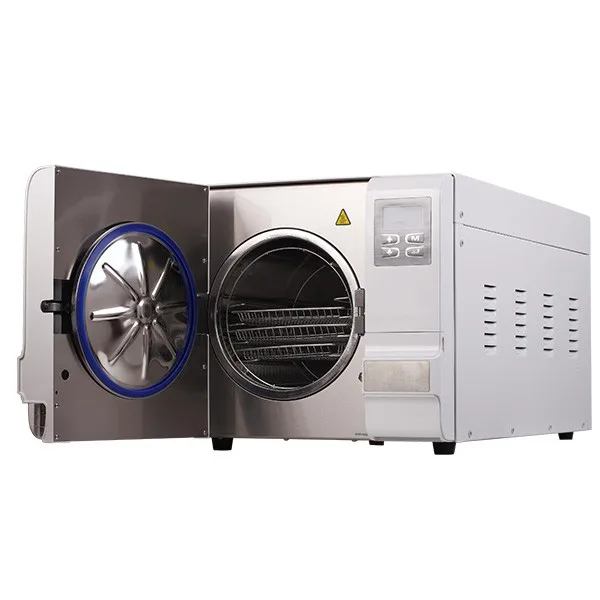

It is a sterilizer special for extra-long instruments, sterilization chamber depth can reach 620mm, effectively solve the problem such as laparoscopy and other long instruments which can not be sterilized in the ordinary benchtop sterilizers
Full automatic table top autoclave with pre-set programs.
Complies with European standard EN13060.
Working very quietly.
In built independent rapid steam generator ensures quick sterilization cycles.
Rapid post sterilization vacuum drying.
With one flash water tank and used one water tank.
LCD screen displaying time, temperature and pressure, process alert and instrument conditions.
User friendly interface.
Self-initialization when work in different altitude.
Double safety protection system prevents the cycle from starting if the door is not correctly locked. This system also prevents the door from opening if the pressure inside the chamber is not equal to atmospheric pressure outside the chamber.
Pressure safety valve prevents over pressure in the chamber and steam generator.
The power is automatically cut if a short circuit or electrical fault occurs.
Able to detect and identify the exact cause of any problem, and to issue a specific error code to the operator.
Water level main switch in the main tank controlling the min and max water level.
Automatic warning for maintenance.
Printer (option): an internal printer is optional for all D autoclaves.
USB port: it is used for connecting a USB sticker, all sterilization data are automatically written in the USB stick, and can be ready directly in any PC and stored electronically.
Internal Memory: the last 20 cycles can be automatically stored in the autoclave system, which can be printed out at any time.
Number of Trays
3 stainless steel net trays
Size of Trays
Tray 1: 185x570 mm Tray 2: 213x570 mm Tray 3: 227x570 mm
Overall Dimension (WxHxD)
Sterilization time [min.]
Total time [min.]
93/42/EEC Directive on Medical Devices.
97/23/EEC Directive on Pressure Equipment.
EN 13060 Small Steam Sterilizers.
EN 61326, EN 61000 Electromagnetic Compatibility.
EN 61010-1, UL 61010-1Safety requirements.
EN 61010-2-040, IEC 61010-2-040. Specific requirements for steam sterilizers used for treatment of medical materials.
