Dental Instrument Lab Equipment Class B Steam Sterilizer

FOB Reference Price:Get Latest Price
US $900-2,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Pressure Steam Sterilization Equipments
Brand Name:
Smedent
Model Number:
103105
Place of Origin:
Shanghai, China (Mainland)
Certificate:
CE/ISO
Class:
B
Warranty:
18 months
Standard:
N/B/B+ optional
Capacity:
8L,12L,18L,23L
Display:
LED
OEM:
accepted
Delivery time:
within 15 days
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
Autoclave dental adopt
Wood Package
Port
Shanghai, China
Lead Time :
Within 15 days after the payment

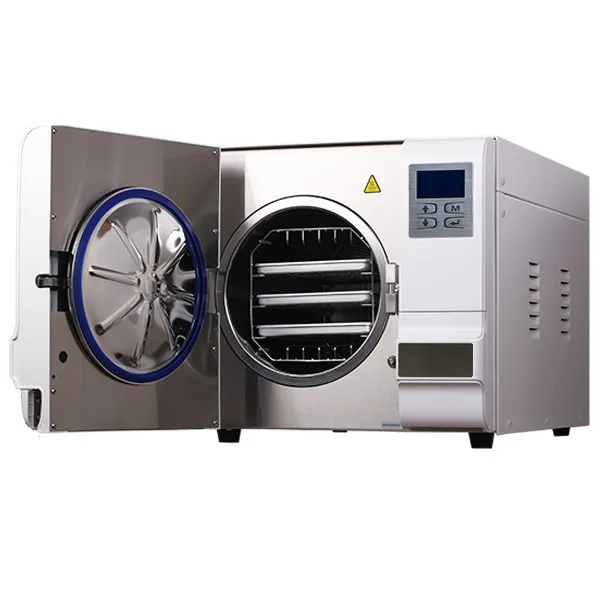

Autoclave Dental Class B

Product Description

Overview:

D are benchtop steam sterilizers with Class B pre & post vacuum type, complies with the European standard EN13060. These autoclaves require minimal bench space making it an idea sterilization solution for small clinic such as dental, veterinary, beauty, podiatry and microbiology requirement.

Excellent Performance:
Full automatic table top autoclave with pre-set programs.
Complies with European standard EN13060.
Working very quietly.
In built independent rapid steam generator ensures quick sterilization cycles.
Rapid post sterilization vacuum drying.
With one flash water tank and used one water tank.
LCD screen displaying time, temperature and pressure, process alert and instrument conditions.
User friendly interface.
Self-initialization when work in different altitude.
Multilanguage menu: Chinese, English, Spanish, German, Lithuanian, Polish, French, Czech, Hungarian, Romanian, Dutch, Latvian, Italian, Portuguese, Russian, Coratian.

Safety and Monitoring:
Double safety protection system prevents the cycle from starting if the door is not correctly locked. This system also prevents the door from opening if the pressure inside the chamber is not equal to atmospheric pressure outside the chamber.
Pressure safety valve prevents over pressure in the chamber and steam generator.
The power is automatically cut if a short circuit or electrical fault occurs.
Able to detect and identify the exact cause of any problem, and to issue a specific error code to the operator.
Water level main switch in the main tank controlling the min and max water level.
Automatic warning for maintenance.

Documentation:
Printer (option): an external printer is optional for all D autoclaves.
USB port: it is used for connecting a USB sticker, all sterilization data are automatically written in the USB stick, and can be ready directly in any PC and stored electronically.
Internal Memory: the last 20 cycles can be automatically stored in the autoclave system, which can be printed out at any time.



 Additional Information:

Order CodeD208D212D218D223
Model NumberSTE-8-DSTE-12-DSTE-18-DSTE-23-D
Chamber DimensionØ170x320 mmØ200x360 mmØ247x350 mmØ247x450 mm
Chamber Volume8 L12 L18 L23 L
Number of Trays2/ Max. 32/ Max. 33/ Max. 53/ Max. 5
Material of TraysAluminumStainless SteelAluminumAluminum
Size of Trays.130x265mm156x295mm192x285mm192x380mm
Voltage Freq.220/110V220/110V220/110V220/110V
 50/60Hz50/60Hz50/60Hz50/60Hz
POWER.r2000W2000W2000W2200W
Overall Dimension (WxHxD)420x370x525 mm420x370x595 mm490x455x600 mm490x455x690 mm
Weight37 kgs40 kgs47 kgs53 kgs



Cycles:

ProgramTemp. [·C]Pressure [Mpa]Sterilization time [min.]
SOLID1342104
 12111020
LIQUID13421010
 12111030
WRAPPED13421010
 12111030
TEXTILE13421010
 12111030
PRION13421018
DRYING---1-20
B&D TEST1342103.5
HELIX TEST1342103.5
VACUUM TEST---15-20

Standards:



  • 93/42/EEC Directive on Medical Devices.
  • 97/23/EEC Directive on Pressure Equipment.
  • EN 13060 Small Steam Sterilizers.
  • EN 61326, EN 61000 Electromagnetic Compatibility.
  • EN 61010-1, UL 61010-1Safety requirements.
  • EN 61010-2-040, IEC 61010-2-040. Specific requirements for steam sterilizers used for treatment of medical materials.
